Belshe T16-2EP: 2023 Belshe T16-2EP Trailer

SKU # Belshe T16-2EP

2023 Belshe T16-2EP

Share
$26,700

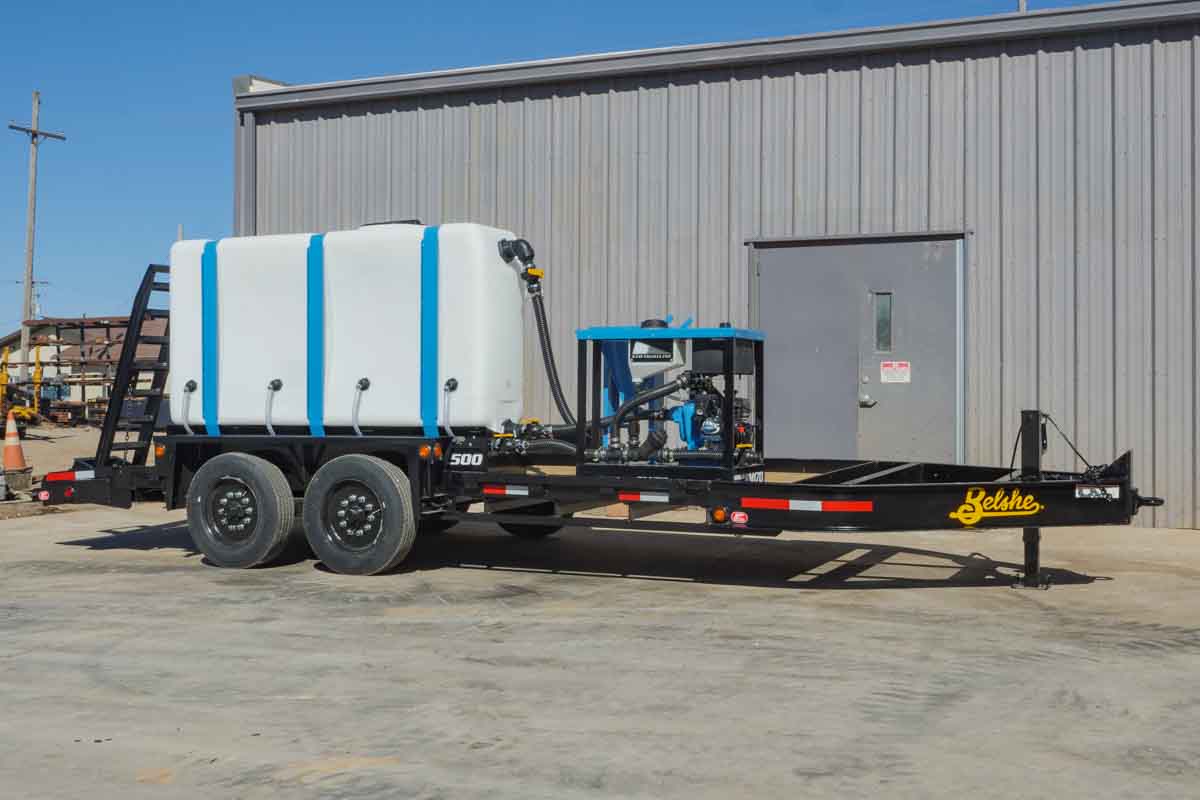

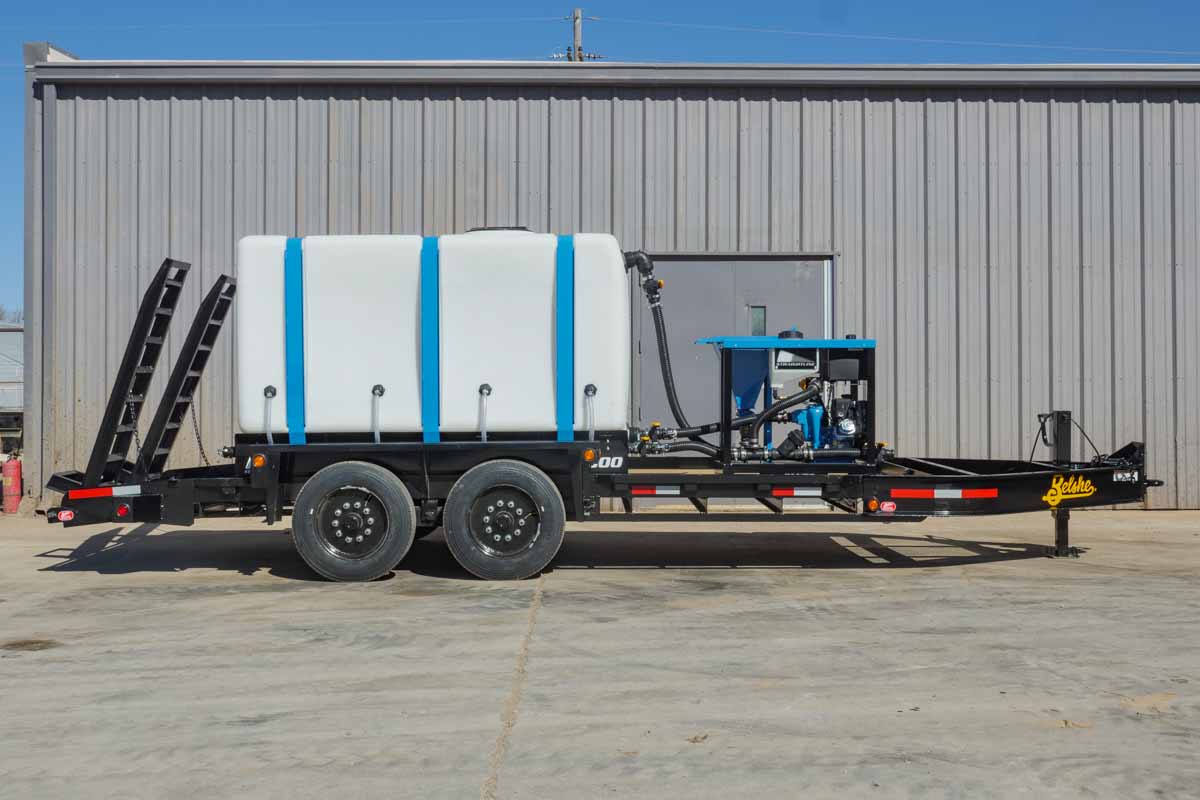

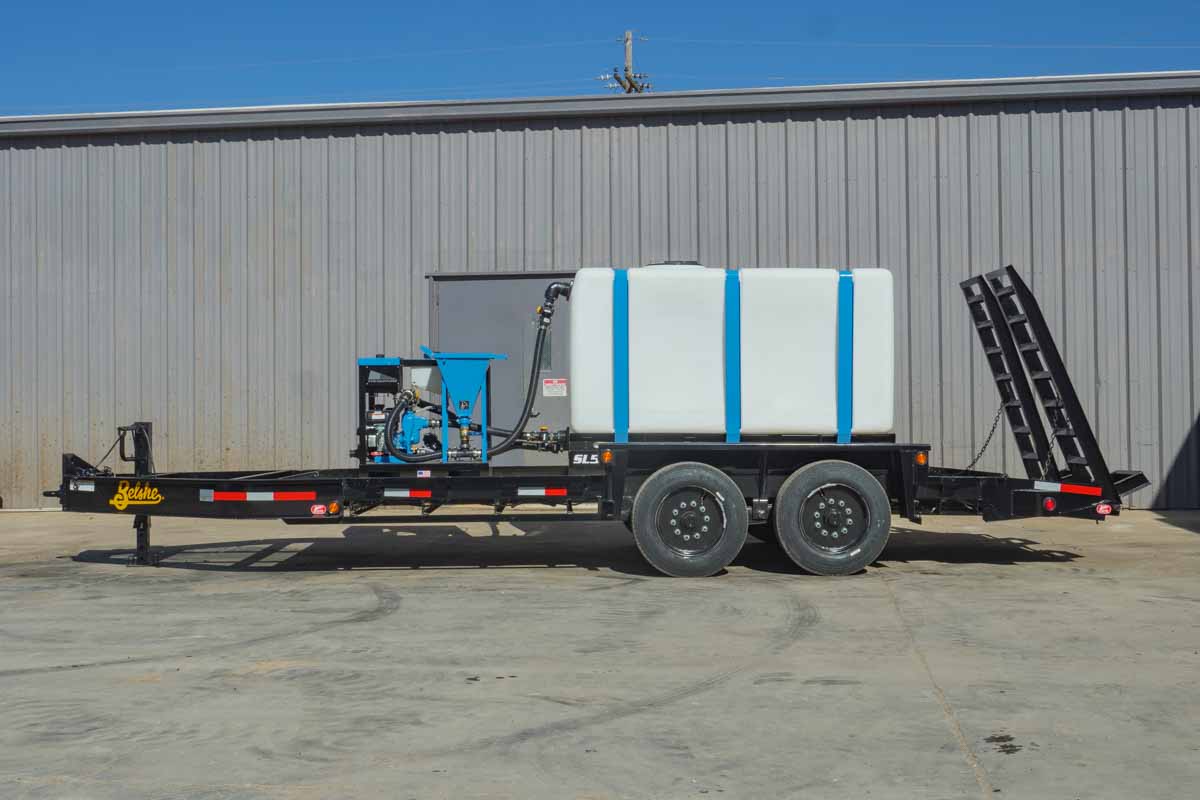

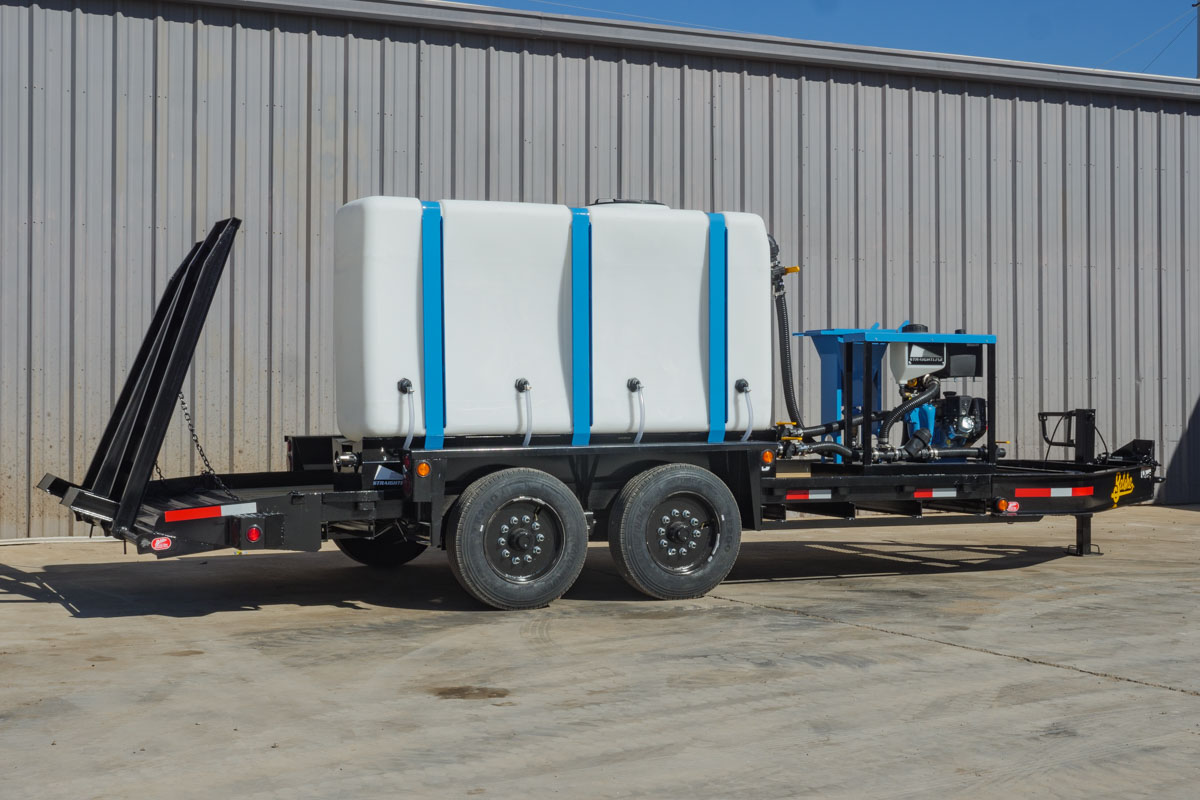

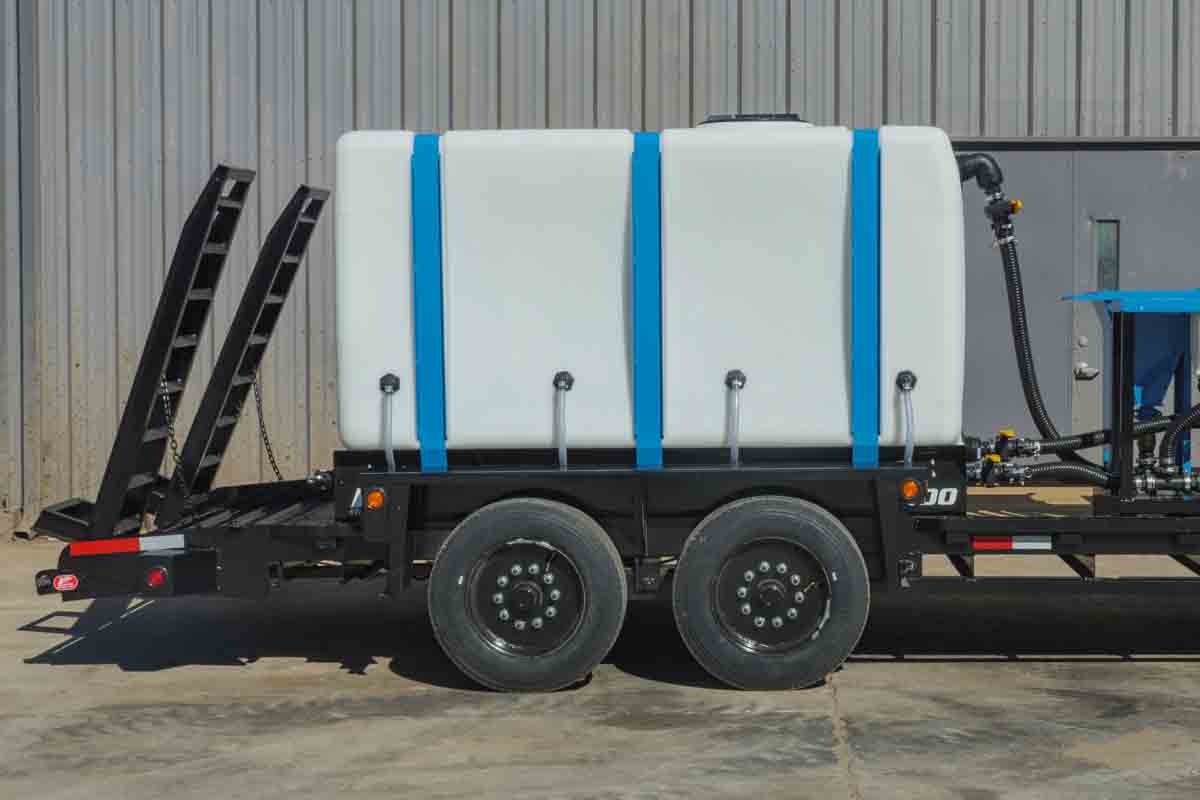

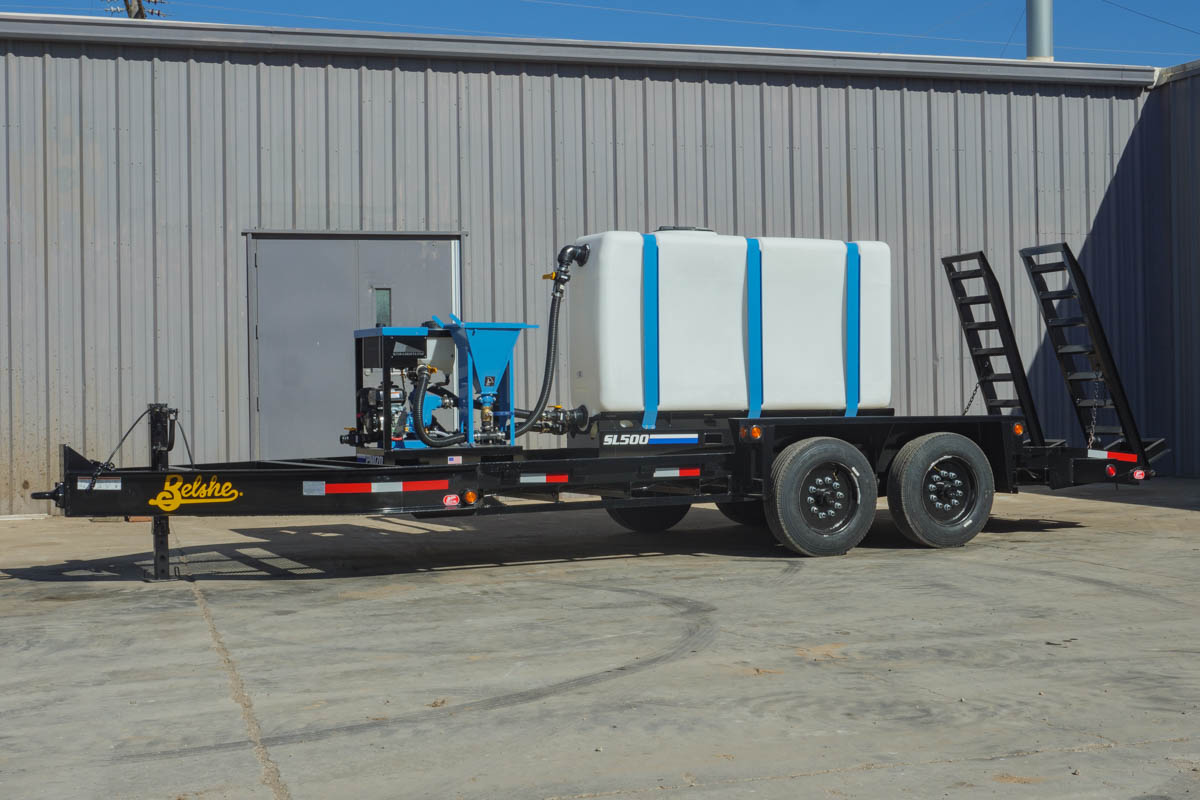

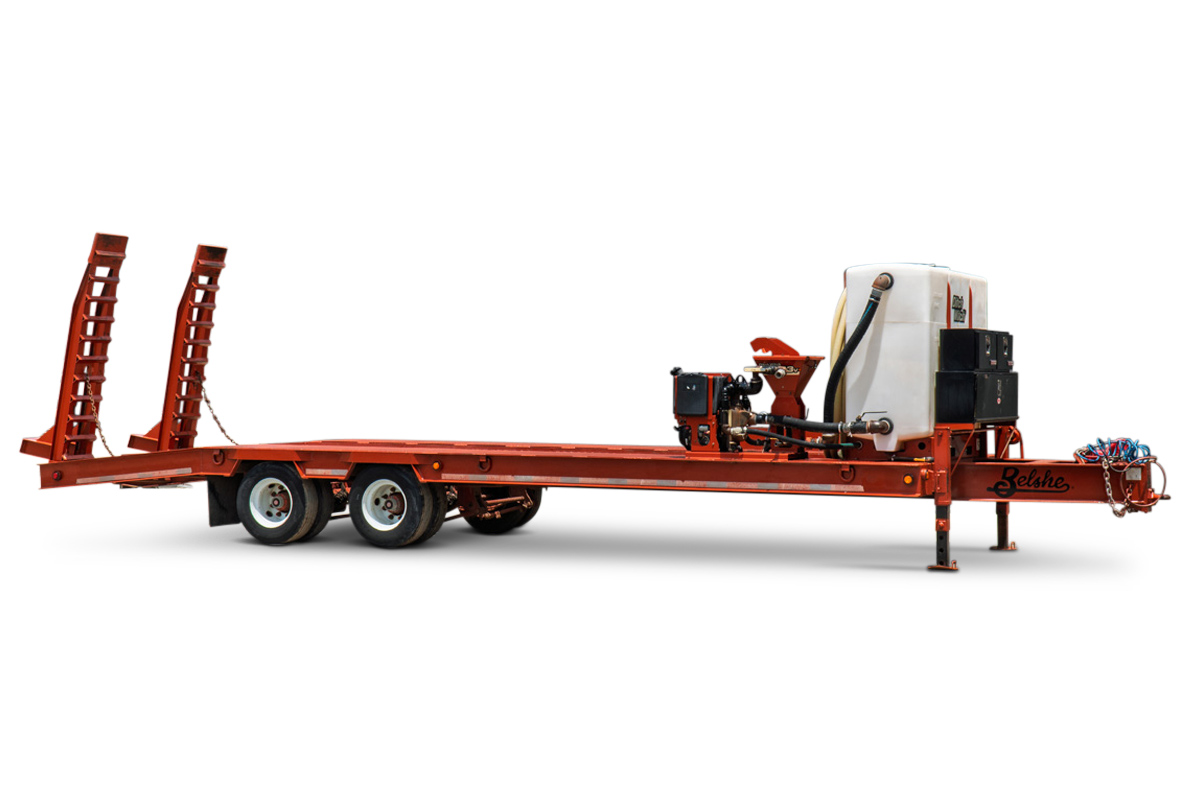

NEW 2023 Belshe T16-2EP Trailer and Mixing System

This NEW 2023 Belshe T16-2EP package, available from Source: HDD, offers a reliable solution for heavy-duty transportation needs. This tandem axle equipment 8-ton trailer is designed to easily haul large loads, featuring a robust build and a capacity. Its electric brakes, fold-up ramps, and adjustable hitch ensure safe and stable transport, while the low-profile design provides easy loading and unloading. With heavy-duty tires and a durable frame, the Belshe T16-2EP is perfect for construction, utility, and HDD projects.

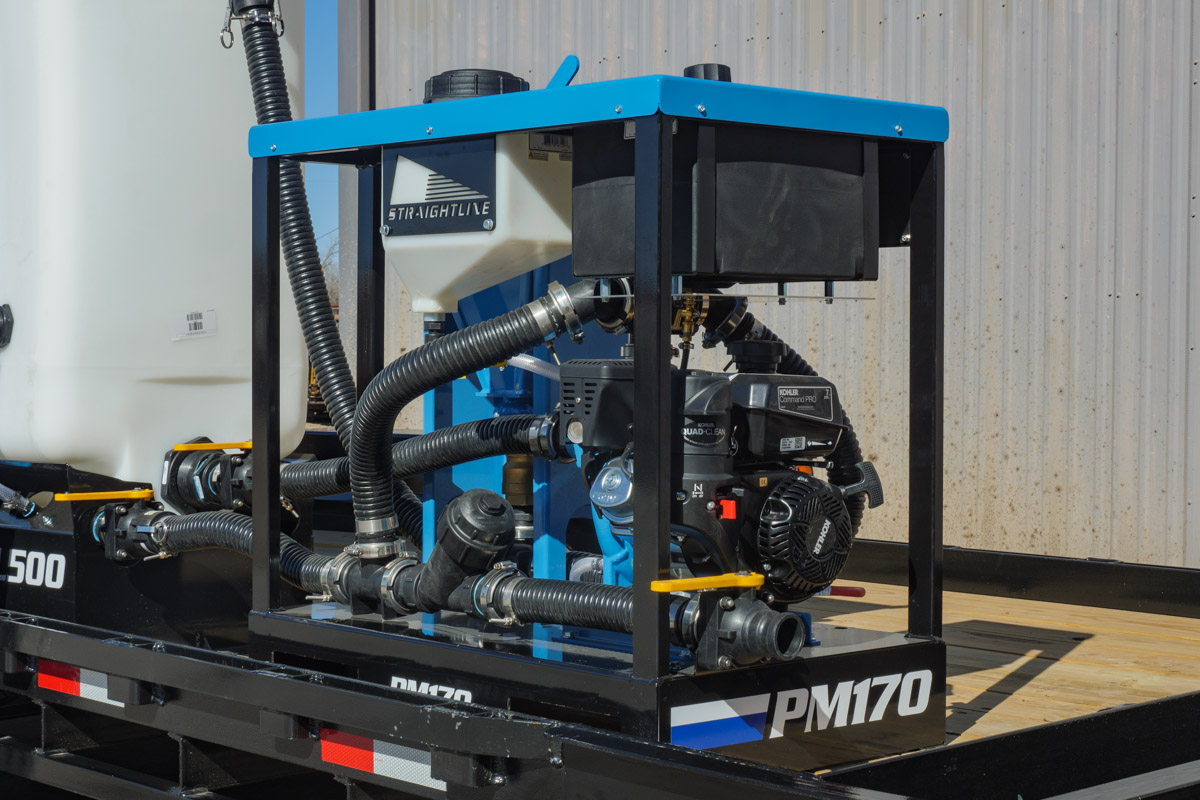

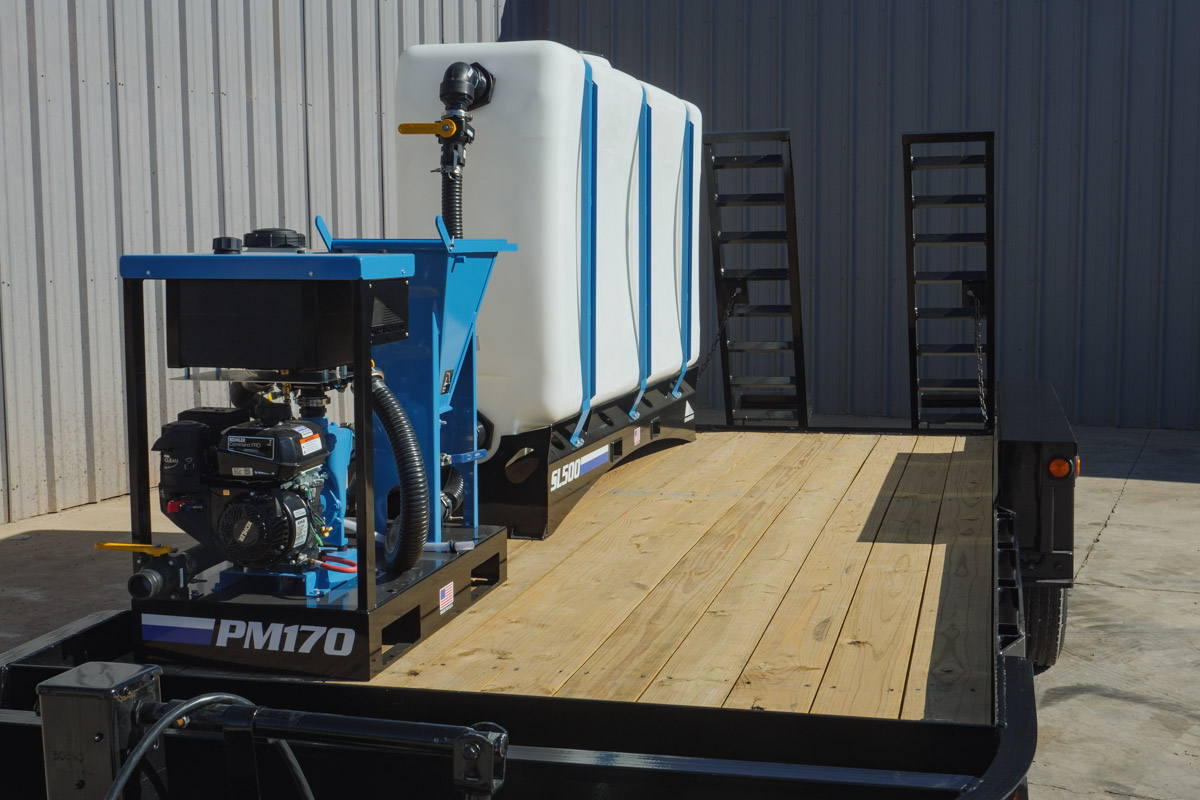

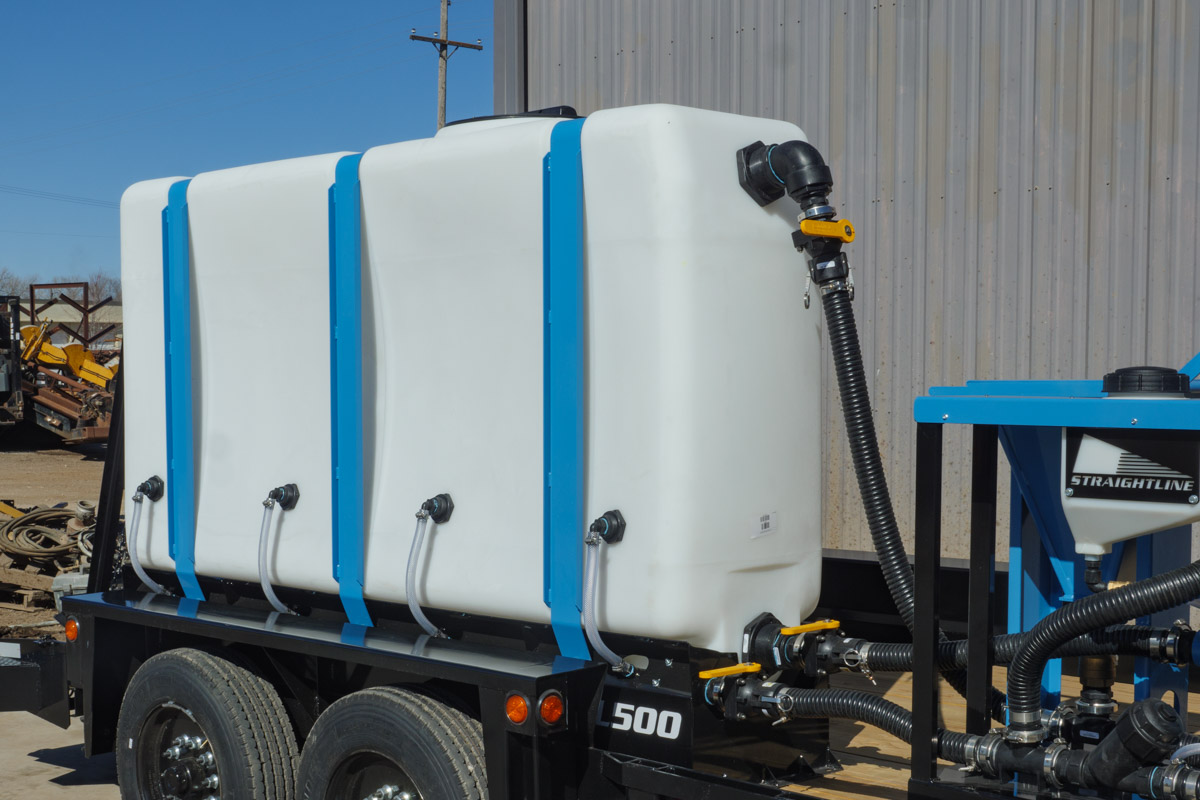

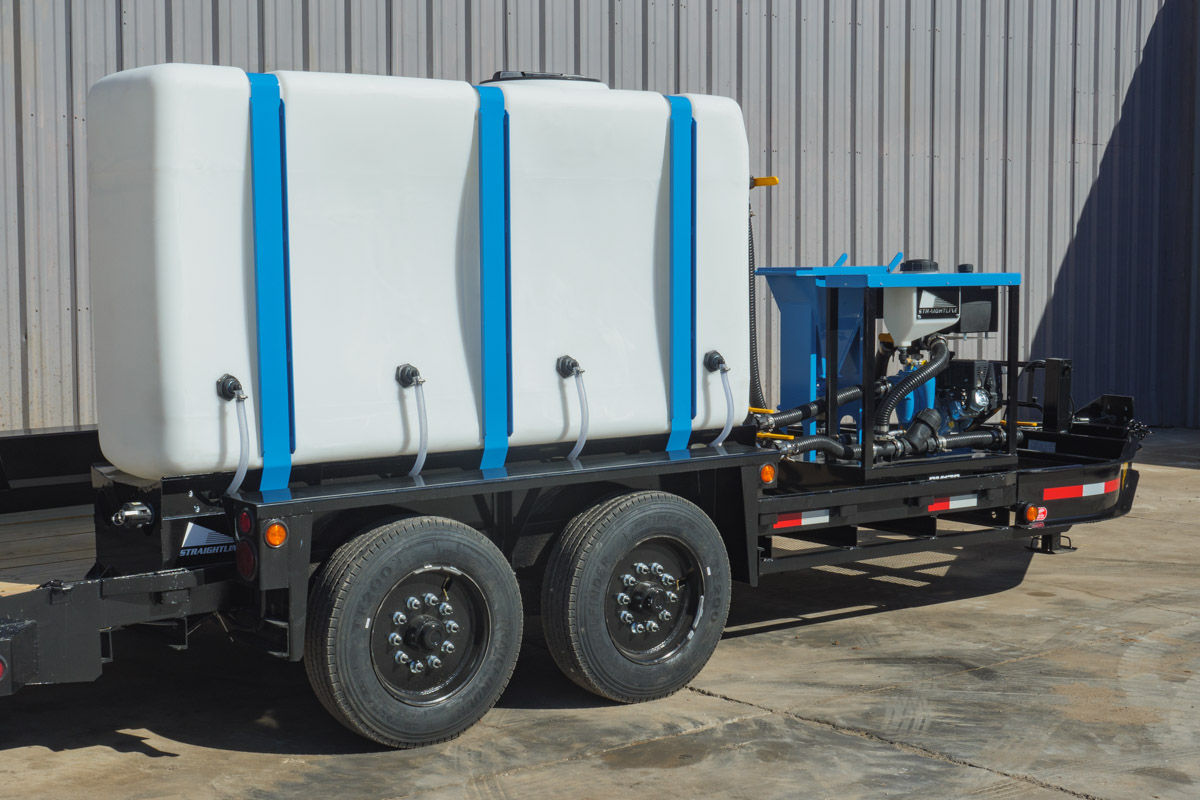

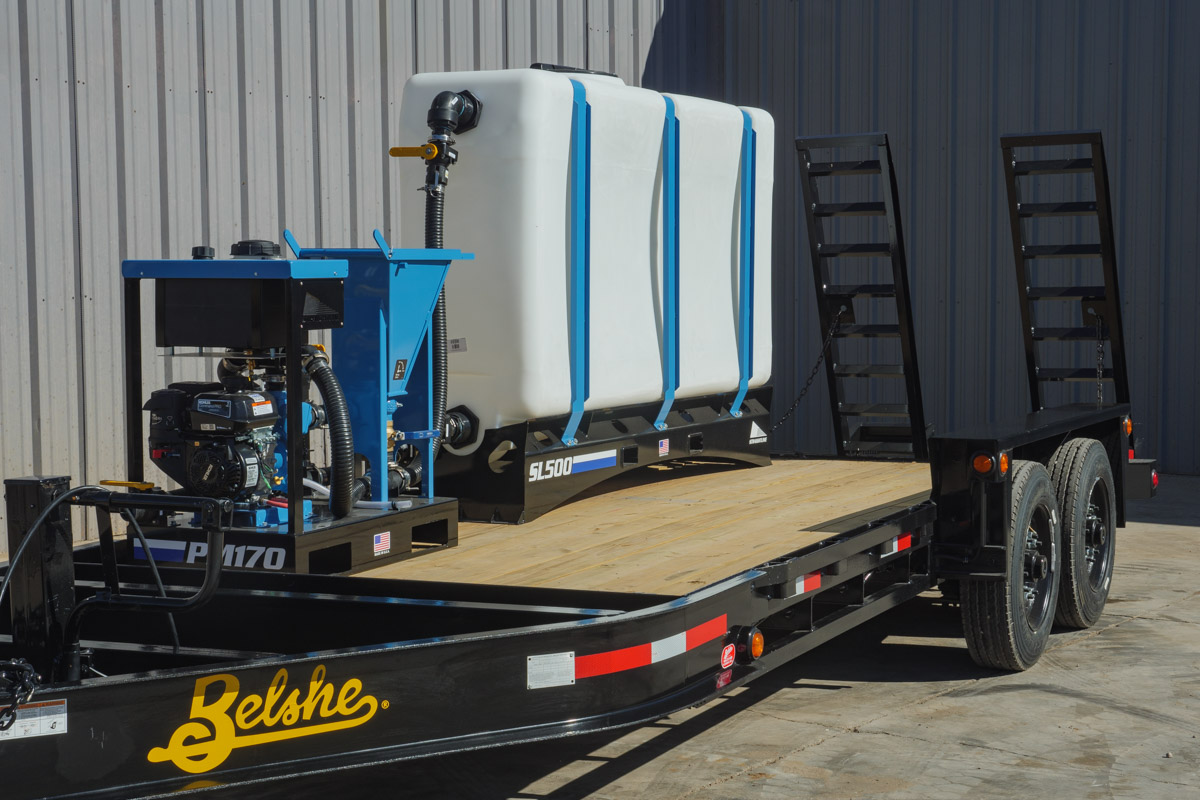

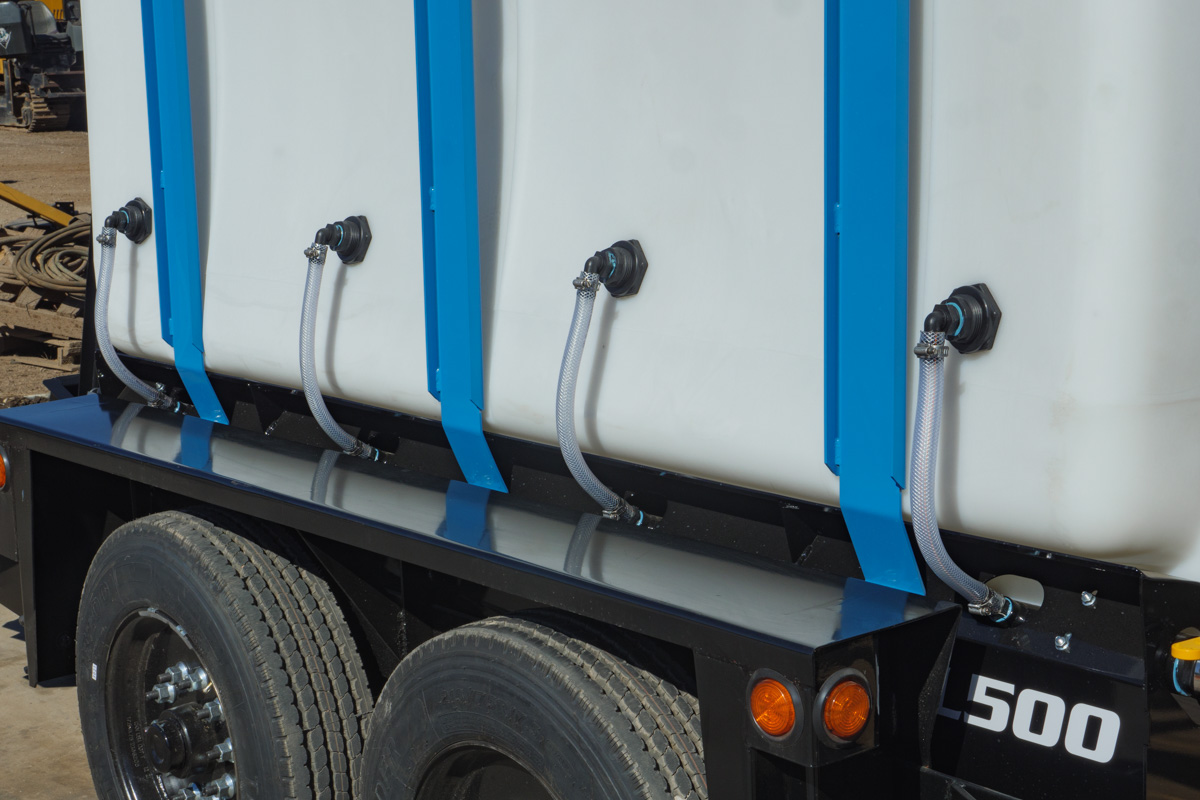

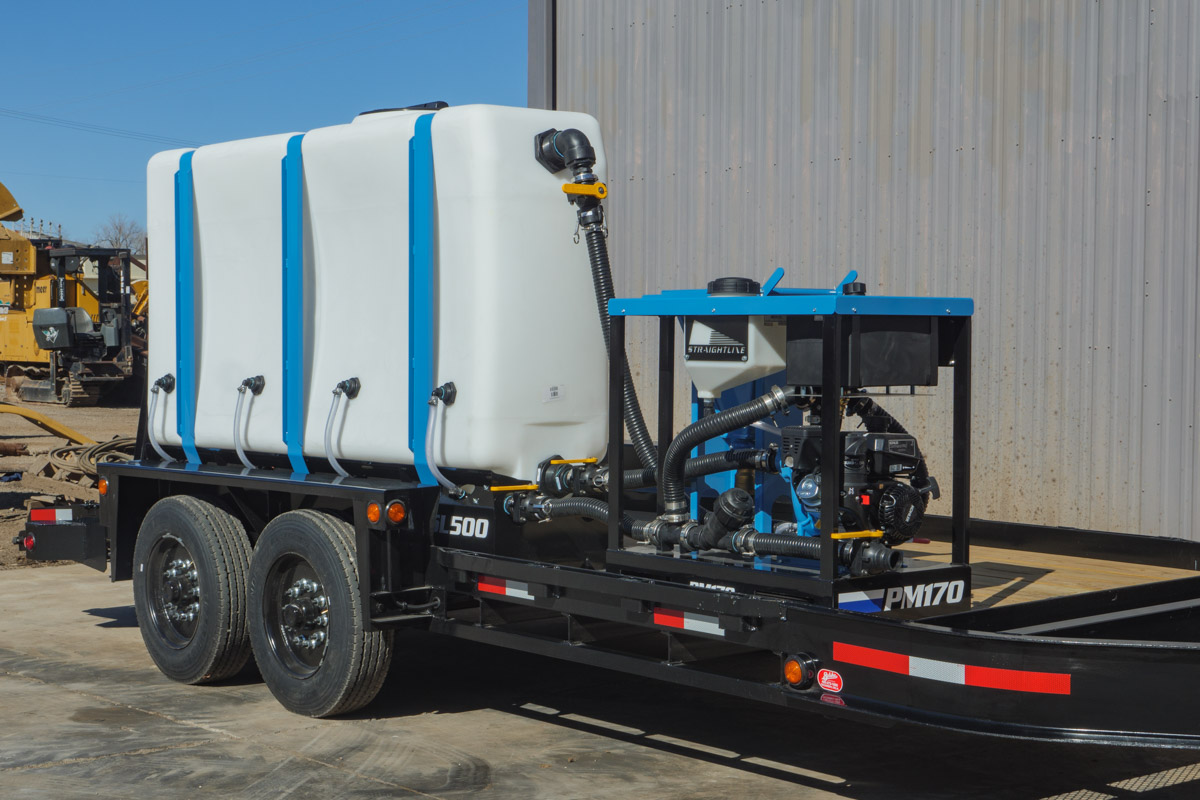

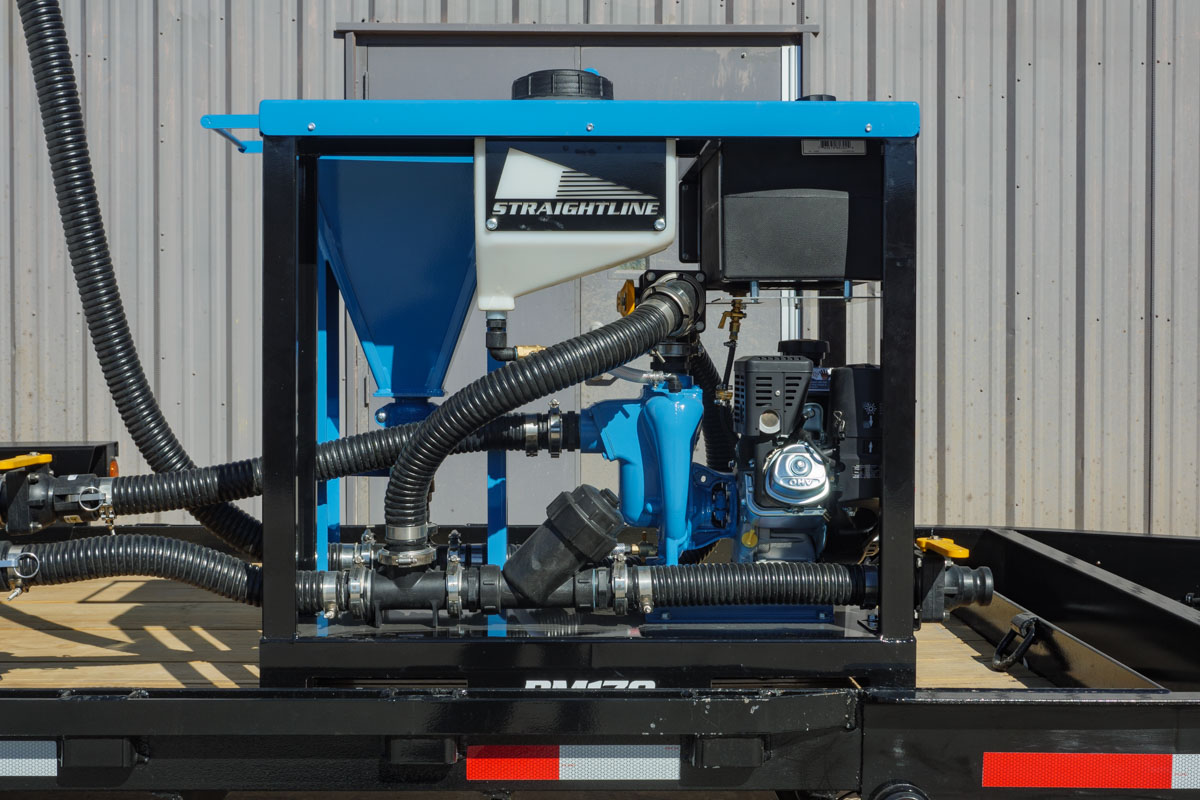

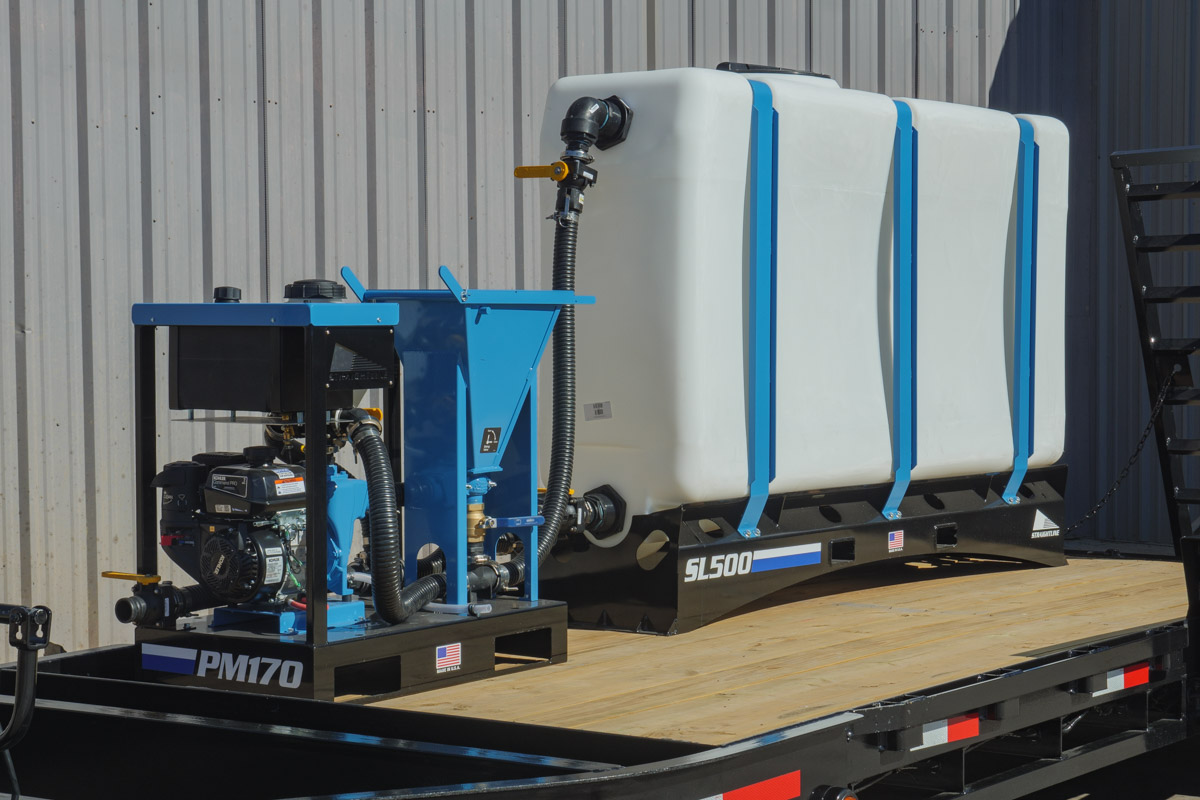

It also comes packaged with a 2023 StraightLine HDD PM170 bentonite mixing system with a StraightLine HDD SL500 500-gallon tank. Whether moving equipment or materials, this trailer delivers the strength and versatility you need.

Call or click for more details on this Belshe T16-2EP trailer today!

T16-2EP FEATURES:

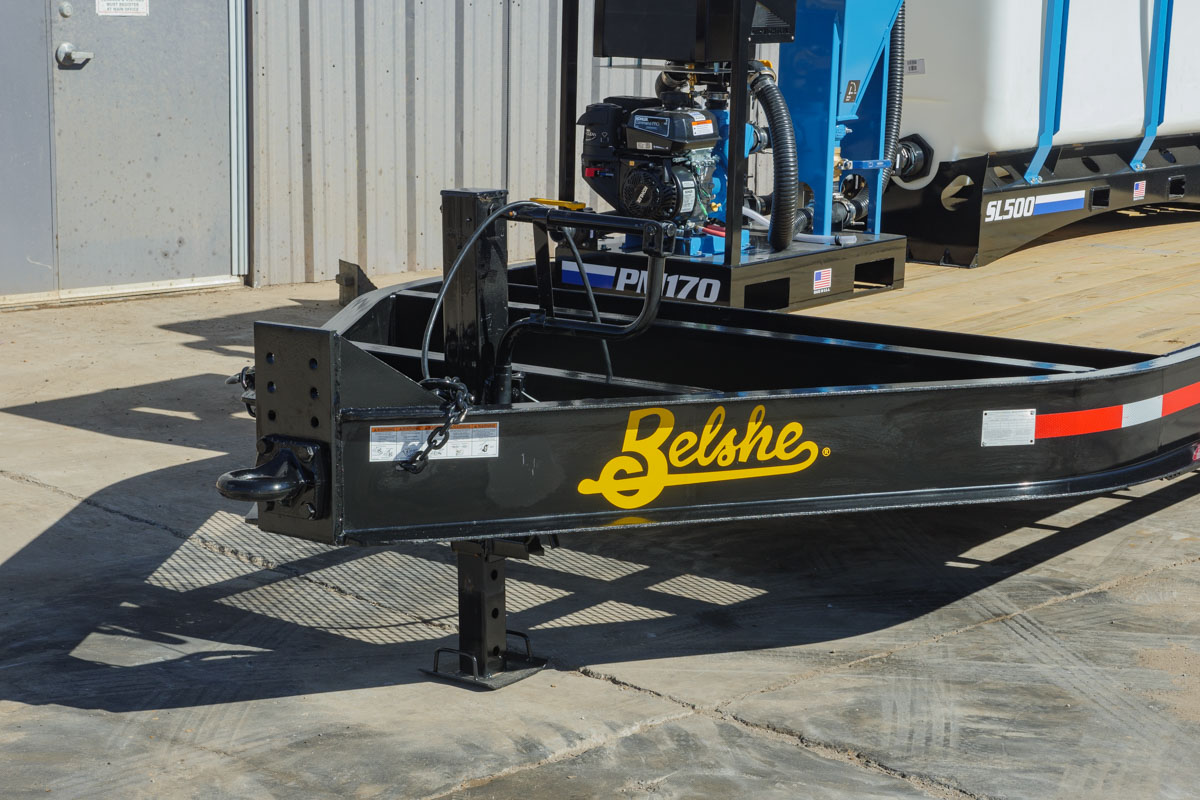

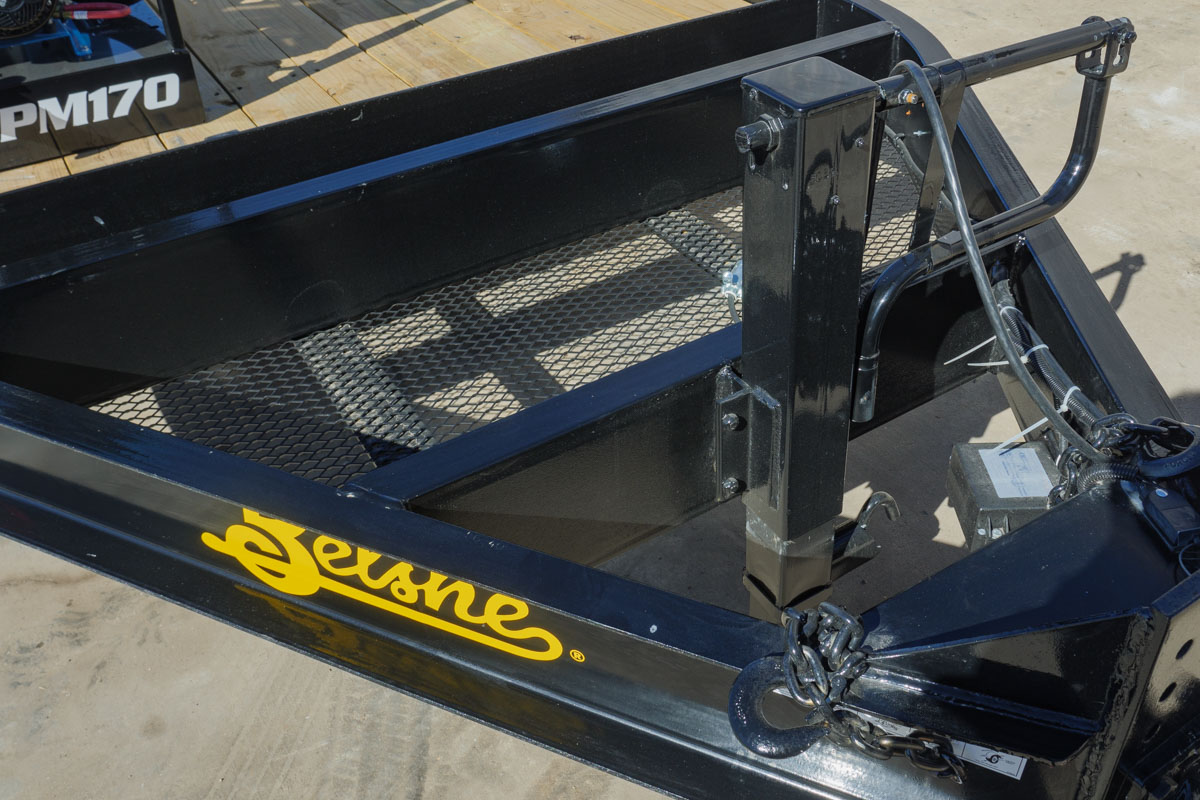

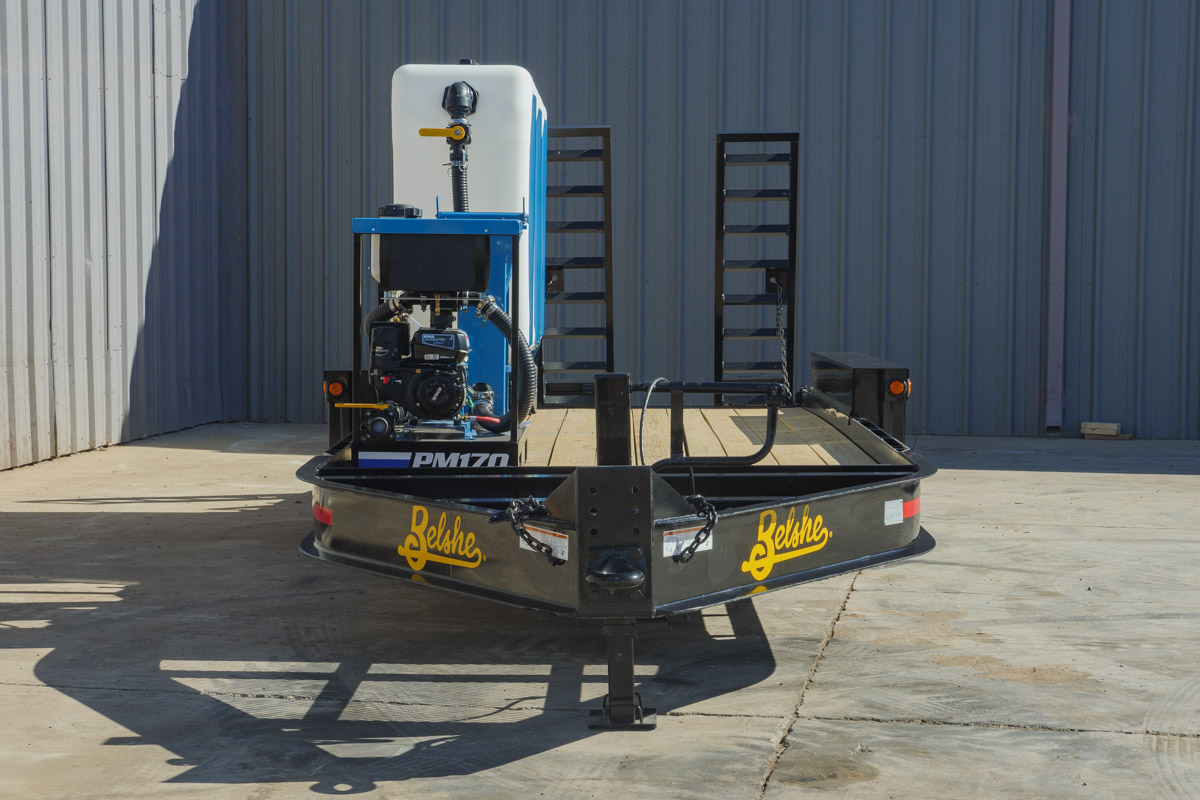

COUPLING:   2.5” lunette eye
SAFETY CHAINS:   .375” grade 70 w/grab hooks
JACK:   12,000 lbs. Drop leg

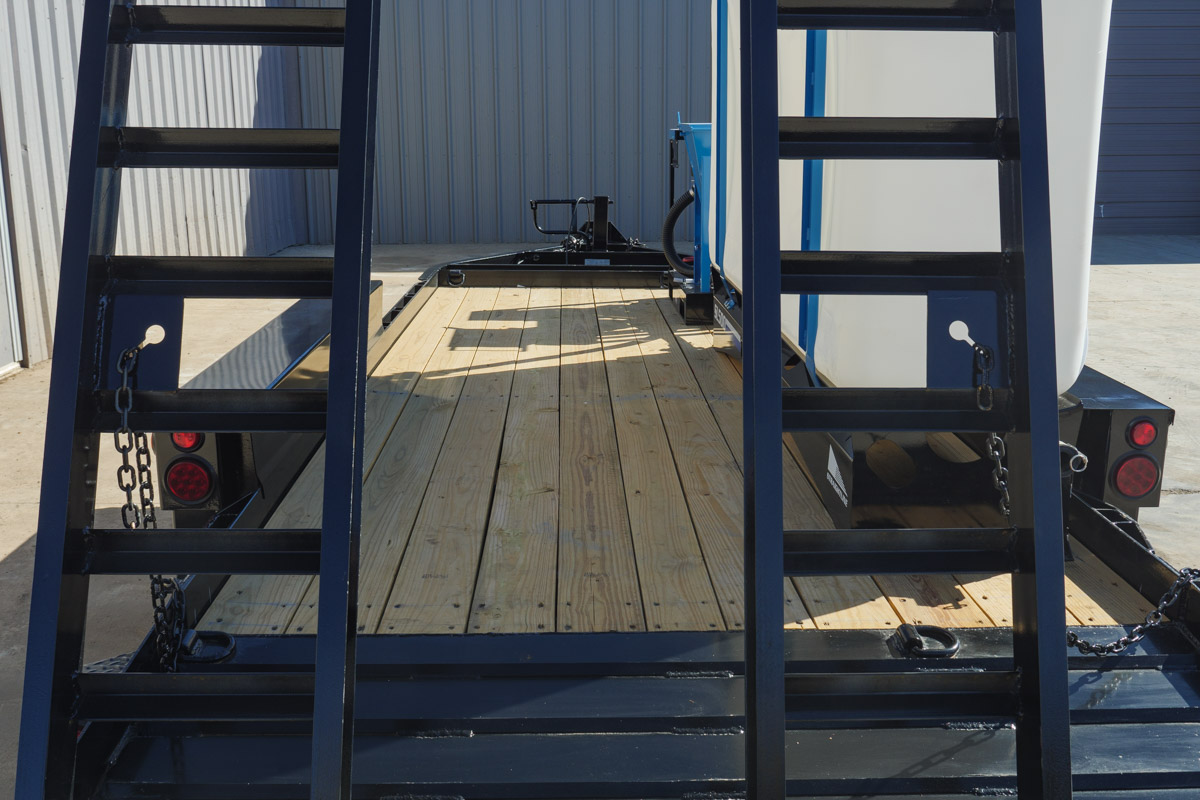

FLOORING:   2” x 8” nominal lumber

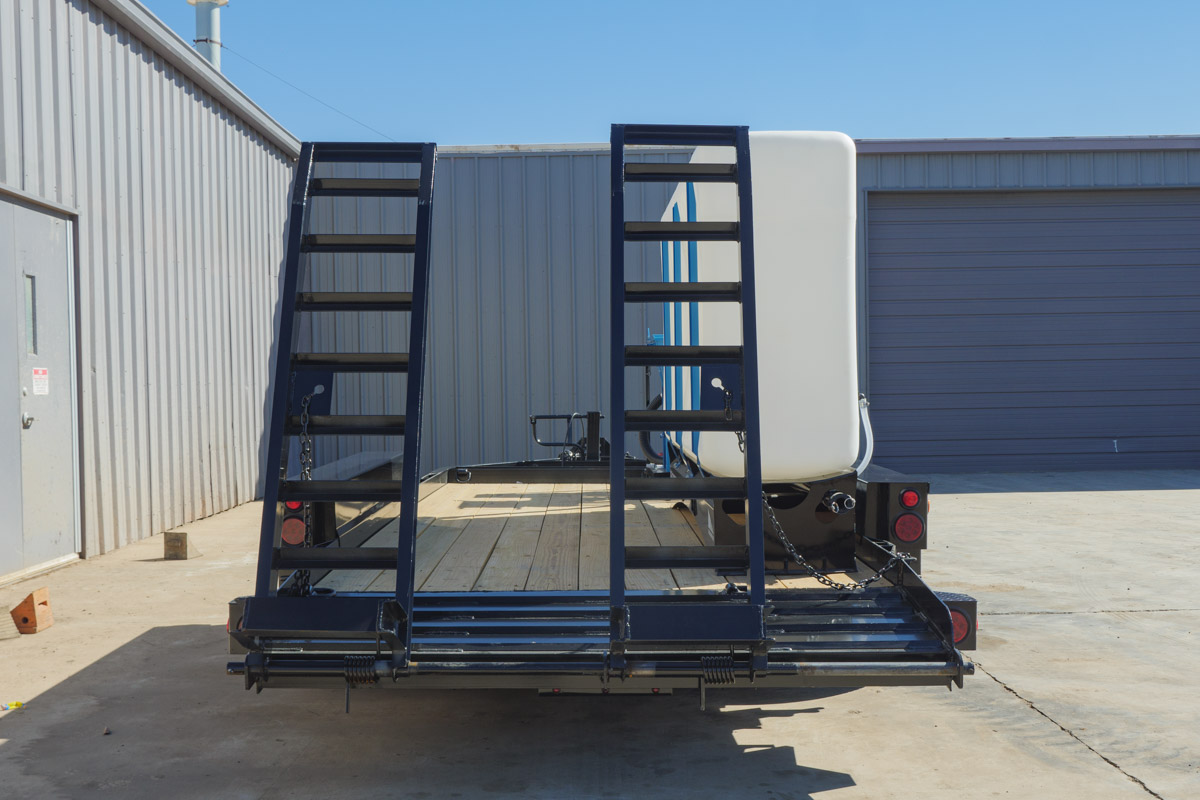

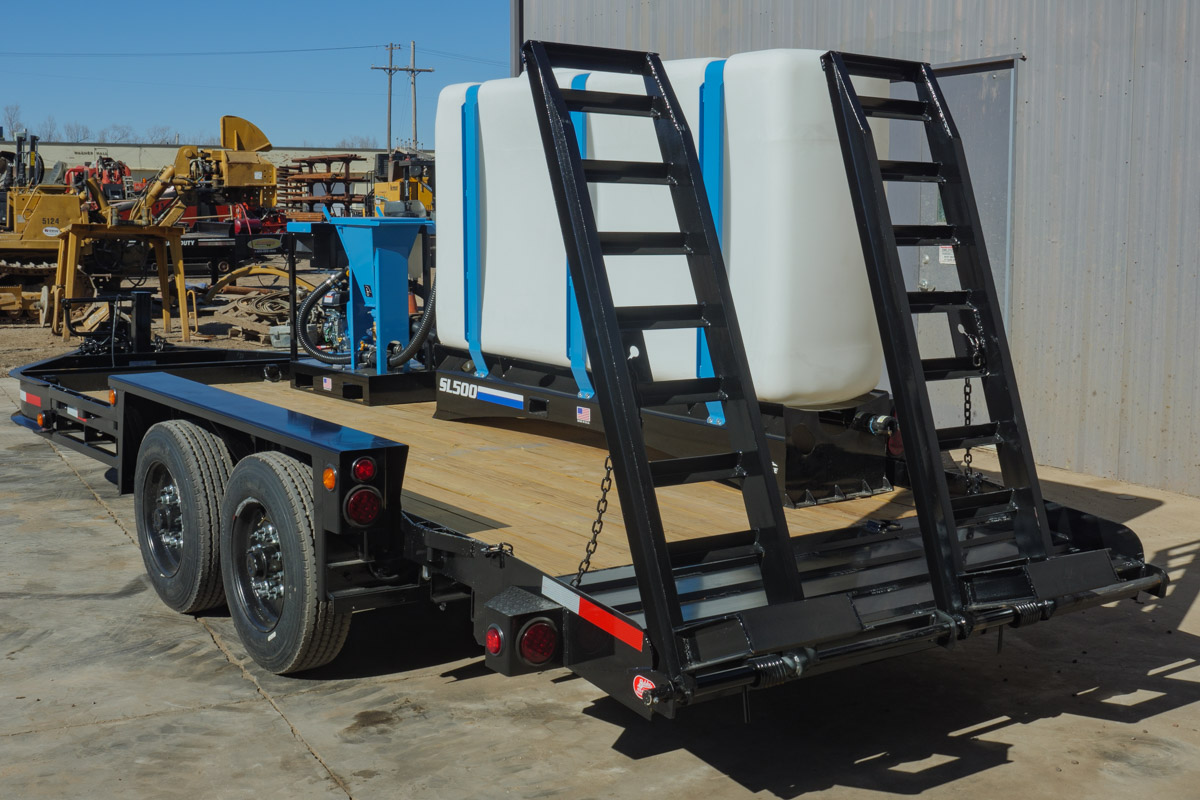

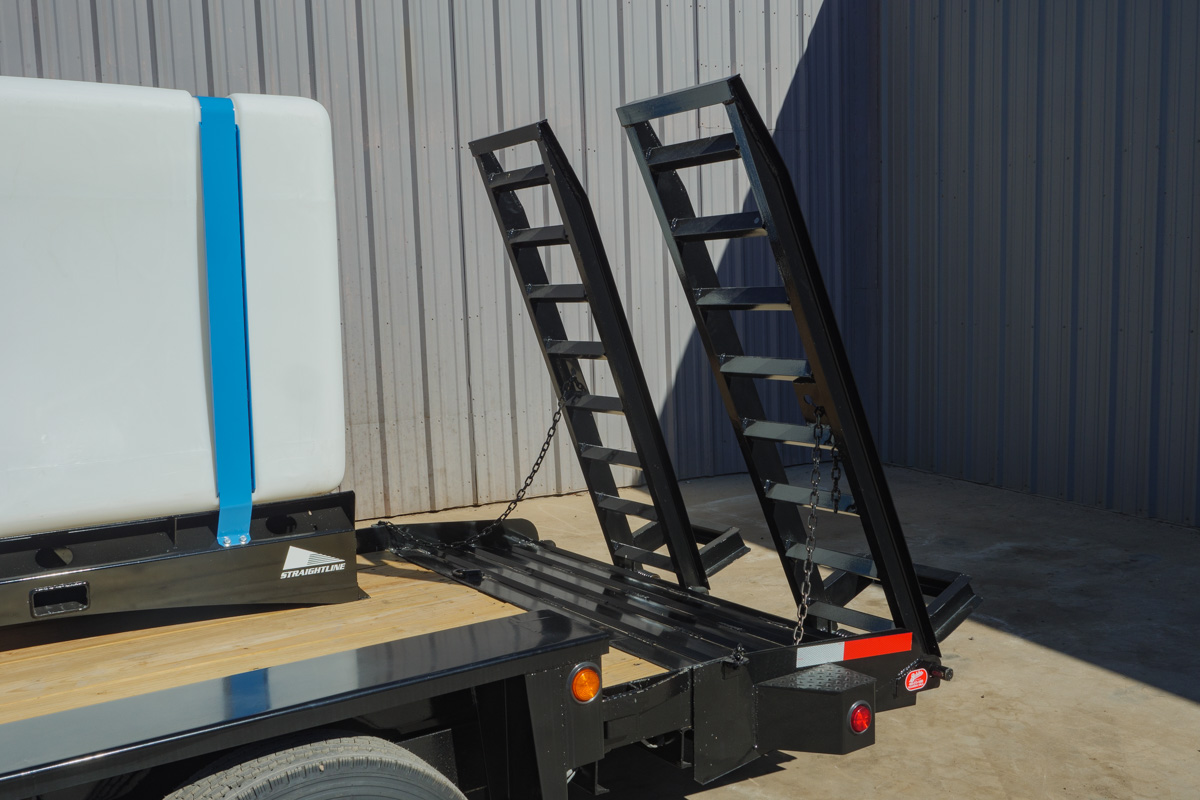

RAMP: ** LADDER BAR, SPRING ASSISTED
TIE DOWNS: ** STAKE POCKETS & RUB RAILS & D-RINGS PER THEIR SPECS
LIGHTING:   12-volt sealed beam, rubber mounted lights; meets D.O.T. specs
BREAKAWAY SYSTEM:   12-volt w/battery, battery box, tow charger & switch, meets D.O.T. specs
PAINT: ** Manufacturer’s standard BLACK enamel & primer
WARRANTY:   1 year against defects in workmanship & materials

Title Value
WEIGHT 4,300 lbs
GVWR (MAX) 16,000 lbs.
TRAILER WEIGHT (MIN) 4,460 lbs.
DOVE WIDTH FULL WIDTH
BETWEEN FENDER WIDTH 80.75”
OVERALL WIDTH 100.75''
DECK HEIGHT 22'' Level
FENDER HEIGHT 13'' From Deck
TONGUE LENGTH 68.5'' to Hitch Plate
DECK LENGTH 16'
DOVE LENGTH 28'' RAISED
RAMP LENGTH 5'
OVERALL LENGTH 25'
AXLE CAPACITY 8,000 lbs. x 2 each w/grease lube
BRAKES 12 1/4” x 3 3/8” electric
SUSPENSION 6 leaf 2” wide slipper spring

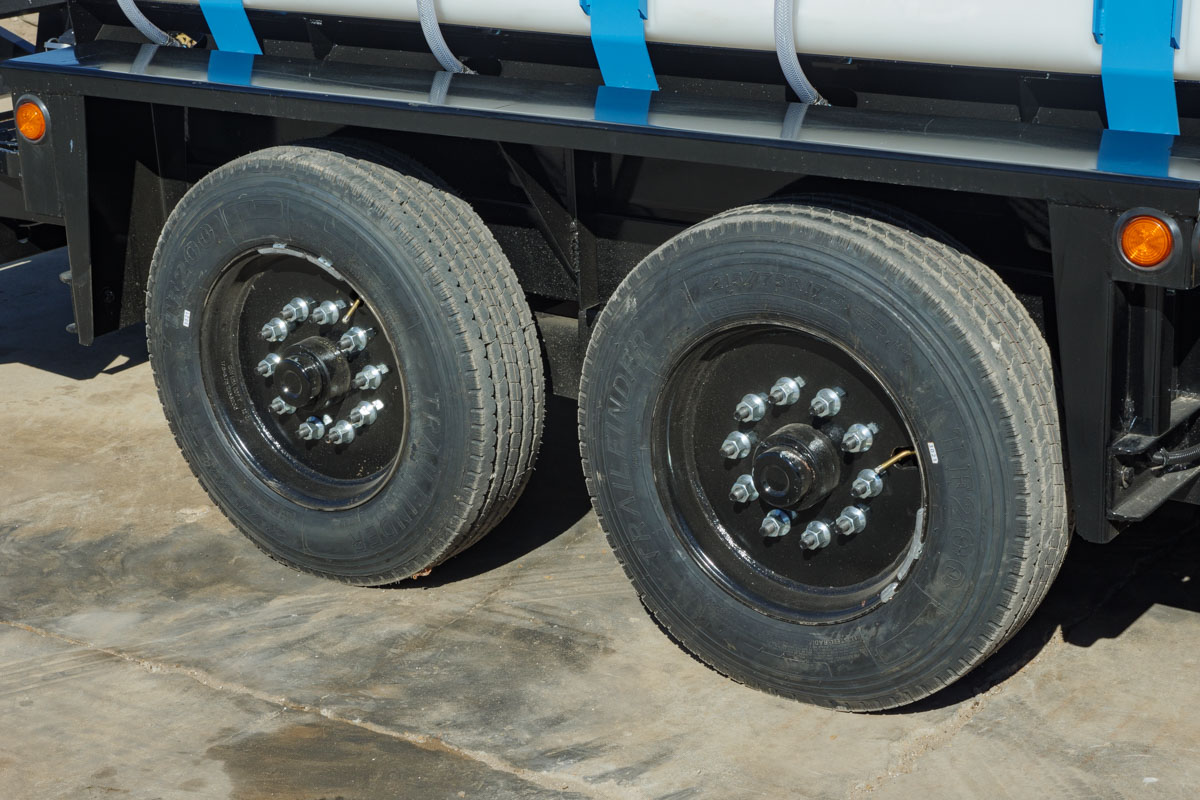

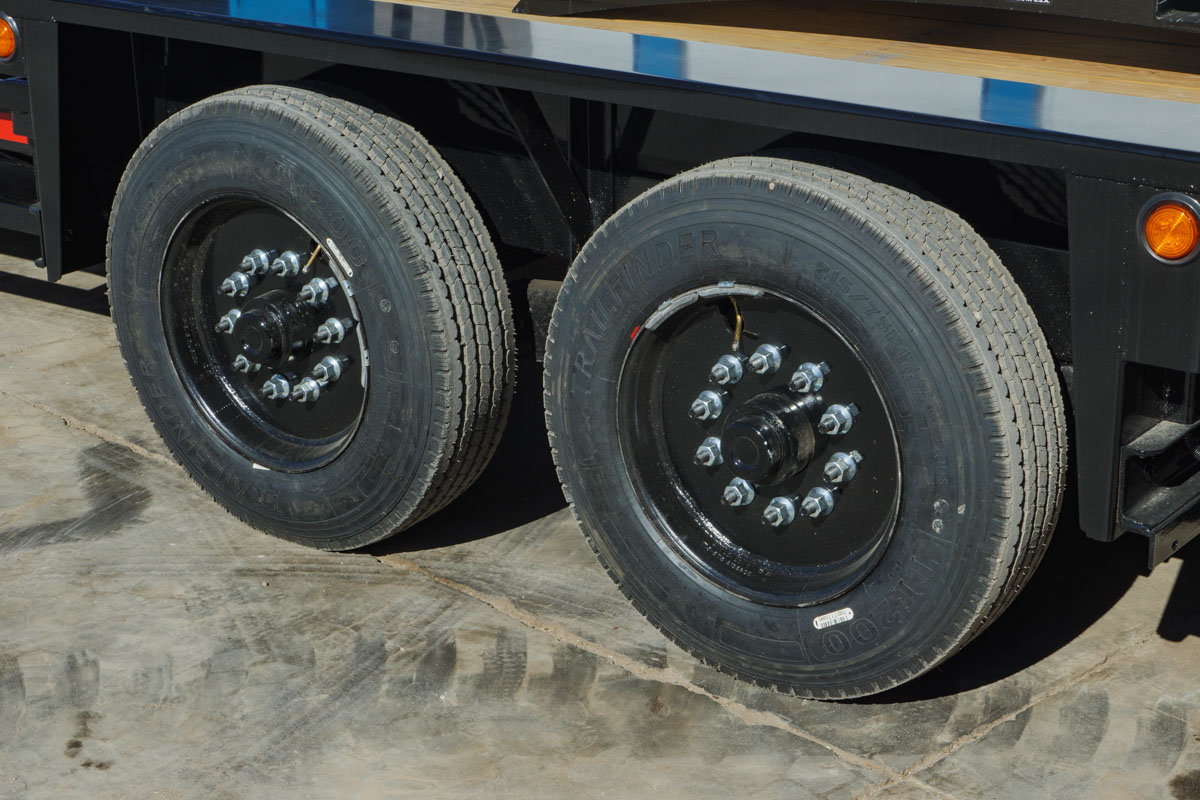

WHEELS 17.5” x 6.75” 10 bolt on 8.75” circle
TIRES 215/75R/17.5 Radial 16-ply load range H
OUTER RAILS 3.5” x 6” x .375” angle A-36
CROSS MEMBERS 4” x 5.4 lb. channel A-36
TONGUE 10” x 15.3 lb. channel A-36
FENDERS 10 gauge formed

Related Products

2016
Belshe
9800-491

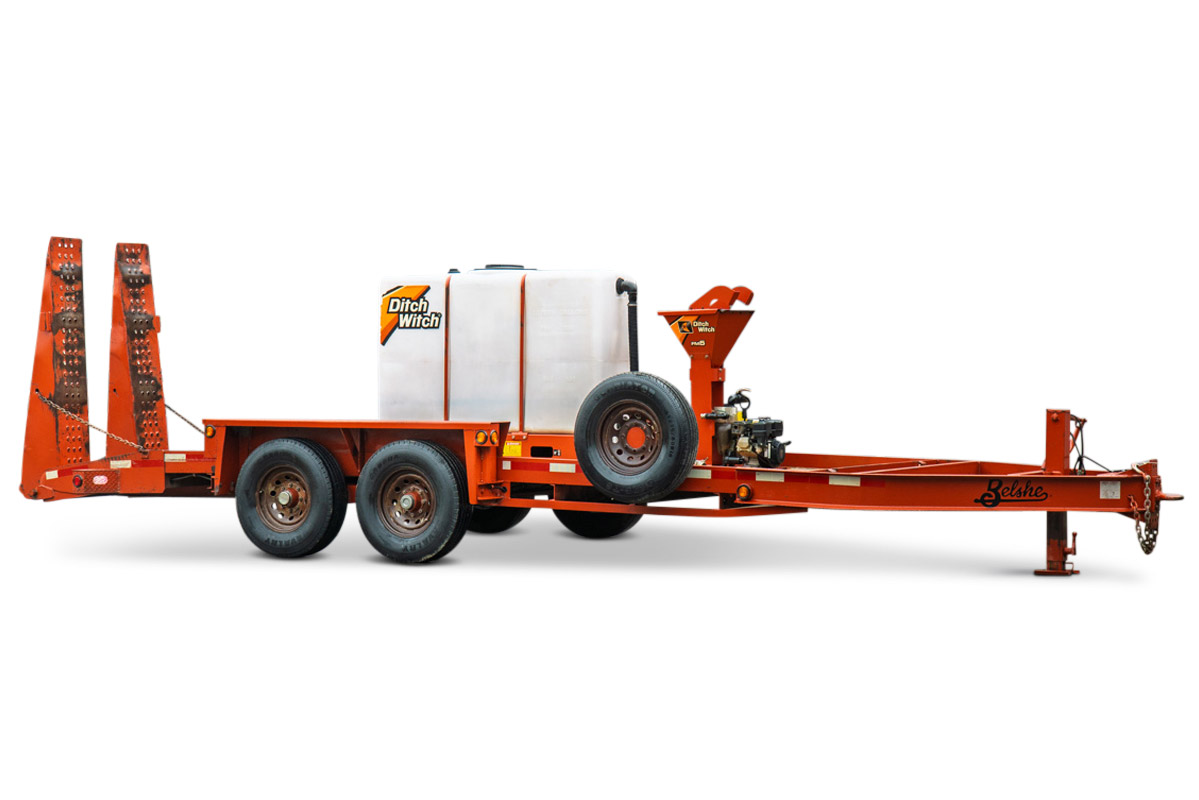

WB14-2EP
